ASUS ROG Strix Z790-F Gaming WiFi ATX Gaming Motherboard

SKU: 555858

Intel LGA 1700 socket: Ready for 13th Gen Intel Core™ processors & 12th Gen Intel Core, Pentium® Gold and Celeron® Processors.
Robust Power Solution: 16 + 1 power solution rated for 90A per stage with with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.

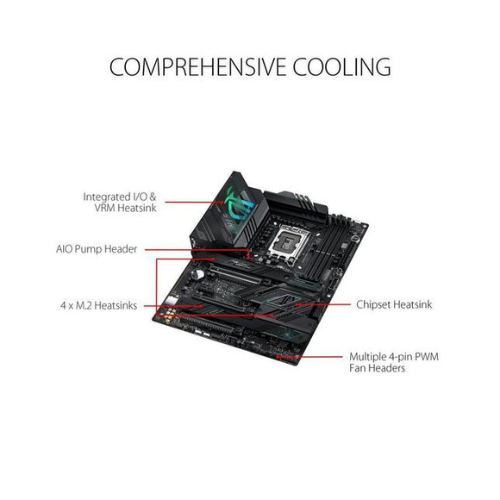

Optimized VRM Thermals: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe.
Ample M.2 Support: One PCIe 4.0 M.2 slot with a heatsink and backplate, and three PCIe 4.0 M.2 slots with heatsinks.

₨ 159,999

Brand	Asus
Color	Black Clear

Compare

Add to wishlist

19 People watching this product now!

Pick up from the ultralapp Store

To pick up today

1-2 Days

Courier delivery

Our courier will deliver to the specified address

2-7 Days

Warranty 1 year

Free 7-Day returns

Payment Methods:

Description

ROG STRIX Z790-A GAMING WIFI Motherboard

Feature	Specification
CPU
– Socket	LGA1700
– Supported CPUs	Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
– Turbo Boost Support	Intel® Turbo Boost Technology 2.0, Intel® Turbo Boost Max Technology 3.0 (support depends on CPU)
Chipset	Intel® Z790 Chipset
Memory
– Slots	4 x DIMM
– Max Capacity	192GB
– Supported Speeds	DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
– Architecture	Dual Channel
– XMP Support	Yes
Graphics
– Ports	1 x DisplayPort, 1 x HDMI® port
Expansion Slots
– Intel® 13th & 12th Gen Processors	1 x PCIe 5.0 x16 slot
– Intel® Z790 Chipset	2 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 3.0 x1 slot
Storage
– M.2 Slots	4 x M.2 slots
– SATA Ports	4 x SATA 6Gb/s ports
– M.2_1 Slot	PCIe 4.0 x4 mode
– M.2_2 Slot	PCIe 4.0 x4 mode
– M.2_3 Slot	PCIe 4.0 x4 mode
– M.2_4 Slot	PCIe 4.0 x4 & SATA modes
– RAID Support	Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Ethernet	1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E (2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)), Bluetooth® v5.3
USB
– Rear Ports
– USB 3.2 Gen 2×2	1 x USB Type-C®
– USB 3.2 Gen 2	3 x USB Type-A, 1 x USB Type-C®
– USB 3.2 Gen 1	4 x USB Type-A
– USB 2.0	4 x USB Type-A
– Front Panel Connectors
– USB 3.2 Gen 2×2	1 x USB Type-C® (supports up to 30W PD Fast-charge)
– USB 3.2 Gen 1	2 x headers (support 4 additional ports)
– USB 2.0	2 x headers (support 4 additional ports)
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Back Panel I/O Ports
– See “USB” section for details
– 1 x DisplayPort
– 1 x HDMI® port
– 1 x Wi-Fi Module
– 1 x Intel® 2.5Gb Ethernet port
– 5 x Gold-plated audio jacks
– 1 x Optical S/PDIF out port
– 1 x BIOS FlashBack™ button
– 1 x Clear CMOS button
Internal I/O Connectors
– See “Fan and Cooling related,” “Power related,” “Storage related,” “USB,” and “Miscellaneous” sections for details
